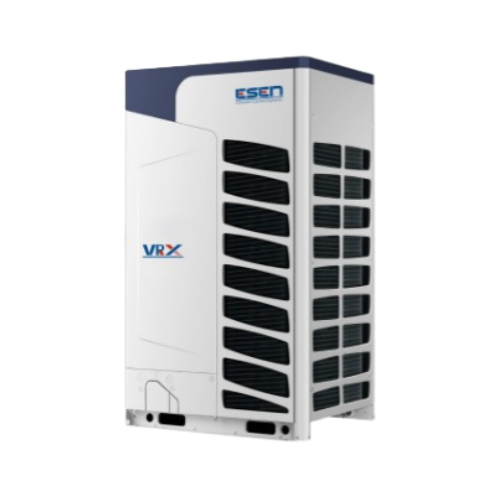

COMMERCIAL VRF CONDENSING UNIT, THREE-PHASE, VERTICAL DISCHARGE, SINGLE MODULE
Features
- 220V | 460V | 3F | 60Hz
Esen VRX EGMV6 CC inverter VRF system adopts advanced technologies such as efficient EVI system, partition heat exchange flow path, sub-cooling design, integrated aluminum electronic control, reliable operation control at ultra-low temperatures, etc., so that the unit can operate smoothly between -25 ℃～ 48℃. It provides a comfortable environment for the user from very cold winters to hot summers. The capacity range of EGMV6 is 22.4kW ～ 272kW, from 8HP to 96HP, 45 models in total, which allows broader application and more flexible installation. It can be applied to commercial occasions such as large office buildings, production factories or large shopping malls.
The EGMV6 series covers all the functions of the EGMV5 series and is more advanced in low temperature heating function and wide operating range.
Energy efficient performance
Achieve energy efficient performance thanks to advanced CC inverter technology, optimized AC system design and precise intelligent control technology.
- HIGH EFFICIENCY CC EVI INVERTER SCROLL COMPRESSOR
The compressor adopts high pressure chamber with excellent performance. It directly inhales and reduces overheating loss to improve compression efficiency.
By adopting the high-efficiency permanent synchronous motor, the stator is centrally interlocked and the efficiency is significantly improved.
- SENSORLESS CC INVERTER FAN MOTOR
CC inverter motor adopts electromotive force to realize continuous speed regulation between 5 Hz and 75 Hz. Compared with the normal CC inverter motor, its operating current is lower, the motor input power is lower and the efficiency is greatly improved.
- ADVANCED TORQUE CONTROL TECHNOLOGY
Processes minimum current and maximum torque control technology.
Use the magnetic resistance torque of the CC inverter compressor rotor effectively, allowing the minimum current to generate the maximum torque, reducing motor winding loss and achieving higher efficiency.
Directly control the motor torque to realize the ultra-low speed operation of the CC inverter fan motor; the torque pulsation is small, which meets the system demand and, at the same time, meets the convenience of the highest requirements.
TECHNICAL DATA SHEET
