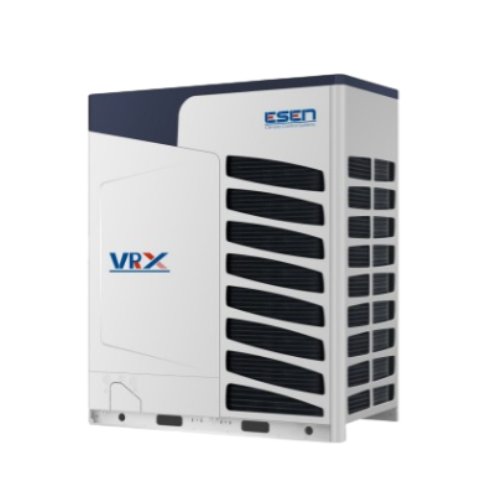

DOUBLE AIR-COOLED CONDENSING UNITS
Features
- 220V | 460V | 3F | 60Hz
Esen VRX EGMV6 CC inverter VRF system adopts advanced technologies such as efficient EVI system, partition heat exchange flow path, sub-cooling design, integrated aluminum electronic control, reliable operation control at ultra-low temperatures, etc., so that the unit can operate smoothly between -25 ℃～ 48℃. It provides a comfortable environment for the user from very cold winters to hot summers. The capacity range of EGMV6 is 22.4kW～272kW, from 8HP to 96HP, 45 models in total, which allows wider application and more flexible installation. It can be applied in commercial occasions such as large office buildings, production factories or large shopping malls.
The EGMV6 series covers all the functions of the EGMV5 series and is more advanced in low temperature heating function and wide operating range.
Energy efficient performance
Achieve energy-efficient performance thanks to advanced CC inverter technology, optimized CA system design and precise intelligent control technology.
- HIGH EFFICIENCY EVI INVERTER CC SCROLL COMPRESSOR
The compressor adopts high pressure chamber with excellent performance. It directly inhales and reduces overheating loss to improve compression efficiency.
By adopting the high-efficiency permanent synchronous motor, the stator is centrally interlocked and the efficiency is greatly improved.
- SENSORLESS CC INVERTER FAN MOTOR
The CC inverter motor adopts electromotive force to realize stepless speed regulation between 5 Hz and 75 Hz. Compared with the normal CC inverter motor, its operating current is lower, the motor input power is lower and the efficiency is greatly improved.
- ADVANCED TORQUE CONTROL TECHNOLOGY
It processes minimum current and maximum torque control technology.
Utilize the magnetic resistance torque of the CC inverter compressor rotor in an effective way, allowing the minimum current to generate the maximum torque, reducing the motor winding loss and achieving higher efficiency.
Directly control the motor torque to realize the ultra-low speed operation of the CC inverter fan motor; the torque pulsation is small, which satisfies the system demand and at the same time meets the convenience of the highest requirements.
TECHNICAL DATA SHEET
