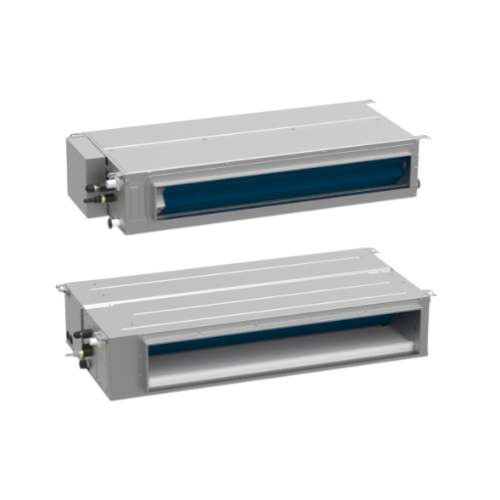

HIGH STATIC FAN & COIL INDOOR UNIT

https://www.esen-hvac.com/web/image/product.template/39122/image_1920?unique=96745dc

Fan & Coil High Static

- External static pressure can be up to 250 Pa.

- Standard mounted condensing water pump lift; Lift height can be up to 1.2 m.

- Optional electrostatic fiber filter PM2.5

- 9-stage static pressure for adjustment, suitable for engineering applications.

    This combination does not exist.

    Contact Us

    .

    Indoor high static pressure duct type unit.

    High static pressure duct type unit, with large air volume, wide range of static pressure adjustment and maximum static pressure, can be up to 250 Pa; Long distance air supply can be widely used in places where it is necessary to connect air pipes to achieve long distance air supply, such as holes, office buildings, shopping malls factories.

    Products available:

     CodeDescription
    EGMV-ND140PHS/B-TFAN & COI EVAPORATOR UNIT 4 TR (48000 BTU) R410A 220V/1F/60HZ HIGH STATIC PRESSURE  ESEN VRX
    EGMV-ND160PHS/B-TFAN & COI EVAPORATOR UNIT 4.5 TR (54000 BTU) R410A 220V/1F/60HZ HIGH STATIC PRESSURE ESEN VRX
    EGMV-ND224PH/A-TFAN & COI EVAPORATOR UNIT  5 TR (60000 BTU) R410A 220V/1F/60HZ HIGH STATIC PRESSURE ESEN VRX
    EGMV-ND140PHS/B-TFAN & COI EVAPORATOR UNIT 4 TR (48000 BTU) R410A 220V/1F/60HZ HIGH STATIC PRESSURE ESEN VRX
    EGMV-ND160PHS/B-TFAN & COI EVAPORATOR UNIT 4.5 TR (54000 BTU) R410A 220V/1F/60HZ HIGH STATIC PRESSURE ESEN VRX
    EGMV-ND180PHS/B-TFAN & COI EVAPORATOR UNIT  5 TR (60000 BTU) R410A 220V/1F/60HZ HIGH STATIC PRESSURE ESEN VRX
    EGMV-ND224PH/A-TFAN & COI EVAPORATOR UNIT  5 TR (60000 BTU) R410A 220V/1F/60HZ HIGH STATIC PRESSURE ESEN VRX
    GMV-ND280PH/A-TFAN & COI EVAPORATOR UNIT 8 TR (96000 BTU) R410A 220V/1F/60HZ HIGH STATIC PRESSURE ESEN VRX

    TECHNICAL DATA SHEET
