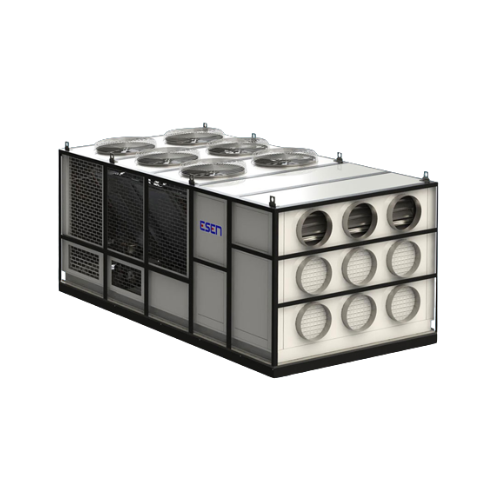

MOBILE PACKAGE UNIT
The units consist of condensing and evaporating modules housed in a self-contained arrangement within a rigid steel base and frame for movement or relocation.
self-contained within a rigid steel base and structure for movement or relocation,
and base inlets for handling with forklifts or cranes.
forklifts or cranes.
Ideal for quick set-up in hospitals, entertainment tents, industry, commerce, etc,
stores, etc.
General Features
- Cooling capacity: 150,000BTU/h (12.5 T.R.), 300,000BTU/h (25 T.R.), 600,000BTU/h (50 T.R.) and 900,000BTU/h (75 T.R.)
- Airflow: 2500,5000, 10,000, 10,000, 15,000 CFM
- Configuration: vertical for 2500 and 5000CFM, horizontal for 10,000 and 15,000CFM.
- Units can overcome up to 4 ICW
- Variable air flow
- Electronic control with operating time meter
- Severe duty compressors
- Multi-stage capacity
- Camlock-type quick couplings for power
- Flange connections for flexible ductwork for air injection and return air
- Quiet operation
- Simple installation
